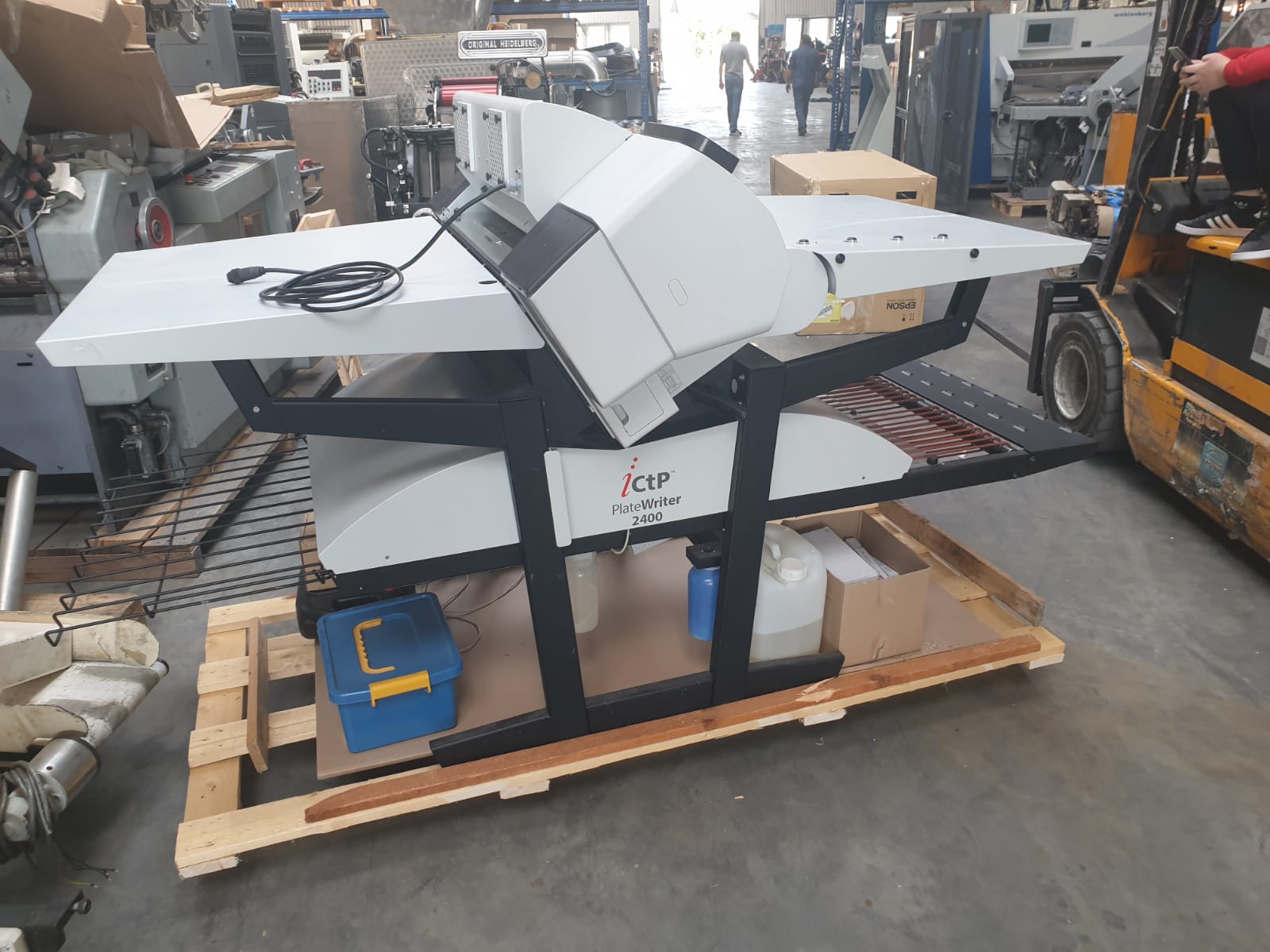

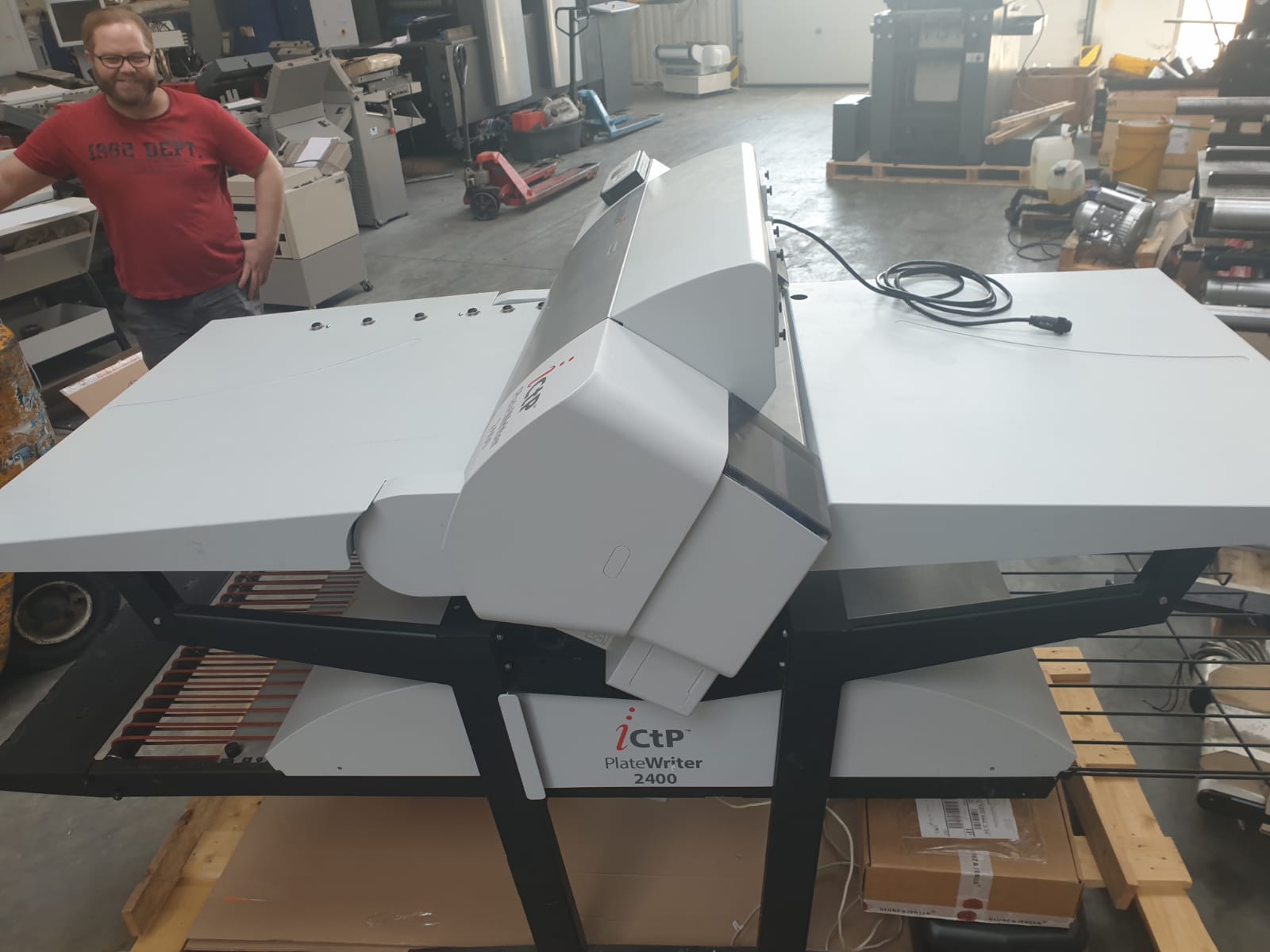

Glunz Jensen, Platewriter 2400

thumb
thumb
thumb
thumb
thumb
  • Referenz-Nr.:M6014
  • Manufacturer:Glunz Jensen
  • Type:Platewriter 2400
  • Year:2011
  • Size:609 x 767 mm
  • Price:on request
  • Description:
  • - **Imaging device**: 1440 nozzle delivering ultra-high definition 2880 dpi
  • - **Imaging fluid**: Patented Liquid Dot™ technology
  • - **Plate type**: Uncoated grained and anodized aluminum plates
  • - **Plate thickness**: 0.15 – 0.30 mm (0.006 – 0.012”)
  • - **Plate size**:
  • - Width: 203 – 619 mm (8.0 – 24.4”)
  • - Length: 279 – 785 mm (11.0 – 30.9”)
  • - **Max imaging size**: 609 x 767 mm (24.0 x 30.2”)
  • - **Imaging resolution**: 1440 x 1440 dpi or 2800 x 2800 dpi
  • - **Imaging speed**: 6 B3 plates/hour at maximum resolution
  • - **Run length**: 50,000 impressions
  • - **Power supply**: 100 to 230 VAC, 50/6
  • - **Power consumption**: Standby: 0.3 kW, Process: 3 kW
  • - **Operating environment**: Temperature
  • - **Footprint**: 1942 x 1178 x 1182 mm
